BBS-130HS - Pneumatic Turbine Vibrator

Accessories
Documents
Dimensions
Tech Data

RECOMMENDED ACCESSORIES

86102 - Ball Valve 1/4"

1/4 - Exhaust Muffler

46102 - Filter/Regulator 1/4" NPT

Application Bulletin
Quick Reference Guides
Complete Service Manual
Flyer
Catalog

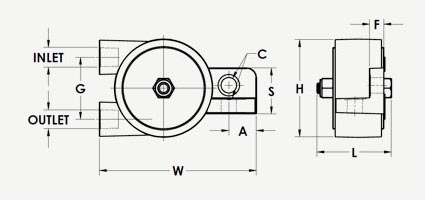

Dimensions

A	9/16 in
	14 mm
C*	3/8 in
	10 mm
L	1-7/8 in
	48 mm
W	3-3/4 in
	95 mm
H	2-1/4 in
	57 mm
F	5/16 in
	24 mm
G	1-1/4 in
	32 mm
S	1-3/16 in
	30 mm
INLET	1/4 NPT
OUTLET	1/4 NPT
*	Bolt Size

Tech Data

60 psi
VPM	12500
CFM	5.5
Force lbs	82
dB	67
Max Lbs Material in Bin	750
Weight	1 lbs

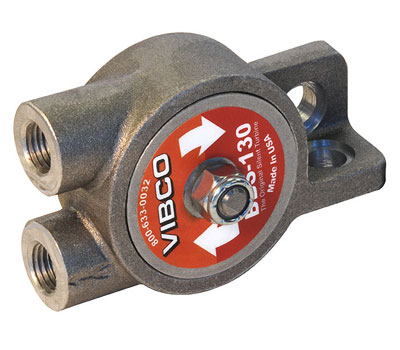

VIBCO BBS Silent Pneumatic Turbine Vibrators are an ideal choice for small bins and hoppers, chutes, and other light material handling applications.

Use VIBCO BBS Turbine Vibrators on any new or existing turbine vibrator installation, or to replace your old, noisy, messy piston or ball vibrators
VIBCO BBS Silent Pneumatic Turbine vibrators feature a tapped, threaded exhaust, aluminum housing and single-bolt-mount for easy installation.
Lower-cost solution
Virtually silent and maintenance free
