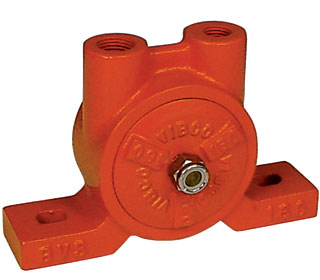

BVS-160 - Pneumatic Turbine Vibrator



RECOMMENDED ACCESSORIES

3X5CH-IN - Channel Iron (Inches)
3/8 - Exhaust Muffler
46102 - Filter/Regulator 1/4" NPT
BVM-2 - Mounting Plate for B,BV,BVS-160/190
86102 - Ball Valve 1/4"
1/4SV - Solenoid Valve

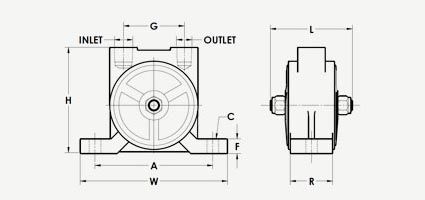

Dimensions

A 4 in
102 mm
C* 3/8 in
10 mm
L 2-7/8 in
73 mm
W 5-1/2 in
140 mm
H 3-5/8 in
92 mm
F 9/16 in
14 mm
G 1-7/8 in
48 mm
R 1-3/8 in
35 mm
INLET 1/4 NPT
OUTLET 3/8 NPT
* Bolt Size

Tech Data

60 psi
VPM 9500
CFM 7
80 psi
VPM 11000
CFM 8
Force lbs 160
Force Newtons 712
dB 70
Max Lbs Material in Bin 1600
Weight 3.5 lbs

VIBCO BVS Silent Turbine Vibrators are ideal for food, pharmaceutical, sanitary and other environments where exhaust must be piped away.  Also ideal for outdoor use.


  • Use VIBCO BVS Turbine Vibrators on any new installation or to replace your old, noisy, messy ball or piston vibrators.
  • VIBCO BVS Turbine Vibrators feature a threaded exhaust to easily pipe off exhausted air, are virtually silent, and are ideal for food, pharmaceutical and other clean environments.
  • Rated for continuous duty.
  • Available in a variety of food-grade and sanitary finishes.
  • Patented design that is quiet and maintenance free
