BVS-320AL - Pneumatic Turbine Vibrator



RECOMMENDED ACCESSORIES

46123 - Filter/Regulator 3/8" NPT
3/8SV - Solenoid Valve
86123 - Ball Valve 3/8"
BVM-4 - Mounting Plate for B,BV,BVS-320
1/2 - Exhaust Muffler

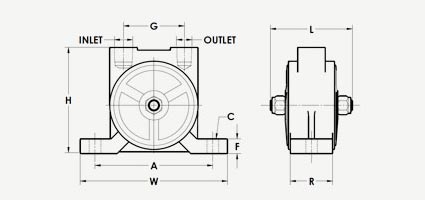

Dimensions

A 5 in
128 mm
C* 1/2 in
13 mm
L 4 in
102 mm
W 6-3/4 in
172 mm
H 4-7/8 in
124 mm
F 1-1/8 in
29 mm
G 2-3/4 in
70 mm
R 1-5/8 in
42 mm
INLET 3/8 NPT
OUTLET 1/2 NPT
* Bolt Size

Tech Data

60 psi
VPM 5500
CFM 9
80 psi
VPM 6800
CFM 10
Force lbs 600
dB 70
Max Lbs Material in Bin 5300
Weight 5.4 lbs

VIBCO BVS Silent Turbine Vibrators are ideal for food, pharmaceutical, sanitary and other environments where exhaust must be piped away.  Also ideal for outdoor use.


  • Use VIBCO BVS Turbine Vibrators on any new installation or to replace your old, noisy, messy ball or piston vibrators.
  • VIBCO BVS Turbine Vibrators feature a threaded exhaust to easily pipe off exhausted air, are virtually silent, and are ideal for food, pharmaceutical and other clean environments.
  • Rated for continuous duty.
  • Available in a variety of food-grade and sanitary finishes.
  • Patented design that is quiet and maintenance free
