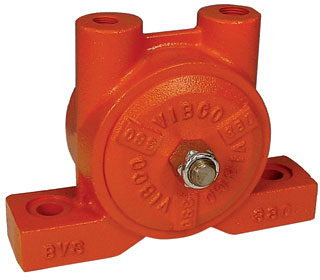

BVS-380 - Pneumatic Turbine Vibrator

Accessories
Documents
Dimensions
Tech Data

RECOMMENDED ACCESSORIES

1/2 - Exhaust Muffler

46123 - Filter/Regulator 3/8" NPT

3/8SV - Solenoid Valve

BVM-5 - Mounting Plate for BV,BVS-380

86123 - Ball Valve 3/8"

4X6.25CH-IN - Channel Iron (Inches)

Application Bulletin
Quick Reference Guides
Complete Service Manual

Catalog

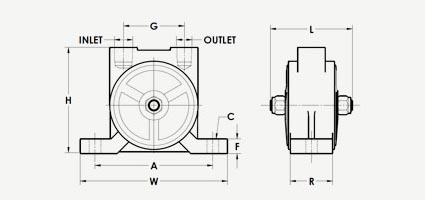

Dimensions

A	6 in
	153 mm
C*	5/8 in
	16 mm
L	4-3/4 in
	121 mm
W	7-15/16 in
	202 mm
H	5-13/16 in
	148 mm
F	1-1/8 in
	29 mm
G	3 in
	77 mm
R	2 in
	51 mm
INLET	3/8 NPT
OUTLET	1/2 NPT
*	Bolt Size

Tech Data

60 psi
VPM	4500
CFM	16
80 psi
VPM	5000
CFM	18
Force lbs	670
Force Newtons	2981
dB	74
Max Lbs Material in Bin	6700
Weight	14 lbs

VIBCO BVS Silent Turbine Vibrators are an ideal choice for the food, pharmaceutical, and chemical industries and other applications requiring closed-air systems.

Use VIBCO BVS Turbine Vibrators on any new installation or to replace worn, noisy and messy piston or ball vibrators
VIBCO BVS Turbine Vibrators feature a threaded exhaust to easily pipe off exhausted air, making them an ideal choice for sanitary and closed-air systems
High force output, rated for continuous duty
Available in a variety of food-grade and sanitary finishes
Patented Design is virtually silent and maintenance free
