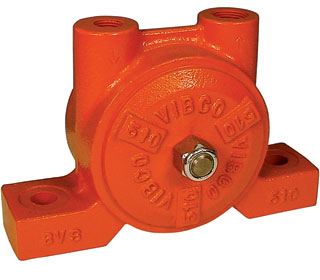

BVS-510 - Pneumatic Turbine Vibrator



RECOMMENDED ACCESSORIES

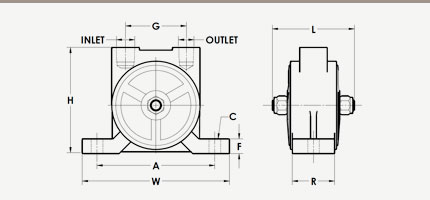

Dimensions

A 7 in
178 mm
C* 5/8 in
16 mm
L 4 3/4 in
121 mm
W 8 15/16 in
227 mm
H 5 3/4 in
146 mm
F 1 1/4 in
32 mm
G 3 3/8 in
86 mm
R 2 1/4 in
57 mm
INLET 1/2 NPT
OUTLET 3/4 NPT
* Bolt Size

Tech Data

80 psi
VPM 4500
CFM 21
Force lbs 900
Force Newtons 4004
dB 77
Max Lbs Material in Bin 9000
Weight 16 lbs

VIBCO BVS Silent Turbine Vibrators are ideal for food, pharmaceutical, sanitary and other environments where exhaust must be piped away.  Also ideal for outdoor use.


  • Use VIBCO BVS Turbine Vibrators on any new installation or to replace your old, noisy, messy ball or piston vibrators.
  • VIBCO BVS Turbine Vibrators feature a threaded exhaust to easily pipe off exhausted air, are virtually silent, and are ideal for food, pharmaceutical and other clean environments.
  • Rated for continuous duty.
  • Available in a variety of food-grade and sanitary finishes.
  • Patented design that is quiet and maintenance free
