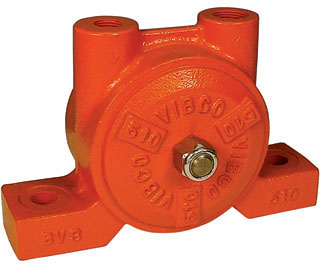

BVS-510HS - Pneumatic Turbine Vibrator

Accessories
Documents
Dimensions
Tech Data

RECOMMENDED ACCESSORIES

1/2SV - Solenoid Valve

86124 - Ball Valve 1/2"

46124 - Filter/Regulator 1/2" NPT

3/4 - Exhaust Muffler

BVM-6 - Mounting Plate for BV,BVS-510

Application Bulletin
Quick Reference Guides
Complete Service Manual
Flyer
Catalog

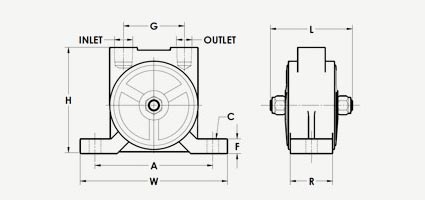

Dimensions

A	7 in
	178 mm
C*	5/8 in
	16 mm
L	4-3/4 in
	121 mm
W	8-15/16 in
	228 mm
H	5-3/4 in
	147 mm
F	1-1/4 in
	32 mm
G	3-7/16 in
	88 mm
R	2-1/4 in
	58 mm
INLET	1/2 NPT
OUTLET	3/4 NPT
*	Bolt Size

Tech Data

60 psi
VPM	7000
CFM	21
80 psi
VPM	10000
CFM	21
Force lbs	900
dB	77
Max Lbs Material in Bin	9000
Weight	16.5 lbs

VIBCO BVS Silent Turbine Vibrators are an ideal choice for the food, pharmaceutical, and chemical industries and other applications requiring closed-air systems.

Use VIBCO BVS Turbine Vibrators on any new installation or to replace worn, noisy and messy piston or ball vibrators
VIBCO BVS Turbine Vibrators feature a threaded exhaust to easily pipe off exhausted air, making them an ideal choice for sanitary and closed-air systems
High force output, rated for continuous duty
Available in a variety of food-grade and sanitary finishes
Patented Design is virtually silent and maintenance free
