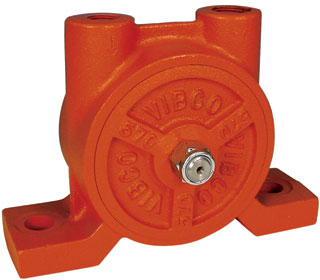

BVS-570HT - Pneumatic Turbine Vibrator

Accessories
Documents
Dimensions
Tech Data

RECOMMENDED ACCESSORIES

1 - Exhaust Muffler

BVM-7 - Mounting Plate for BVS-570

86126 - Ball Valve 3/4"

46126 - Filter/Regulator 3/4" NPT

3/4SV - Solenoid Valve

Application Bulletin
Quick Reference Guides
Complete Service Manual

Catalog

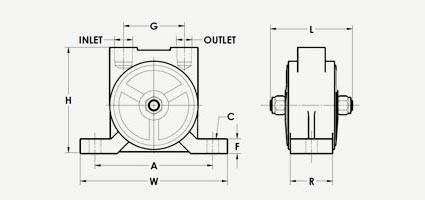

Dimensions

A	8 in
	204 mm
C*	3/4 in
	20 mm
L	5-7/16 in
	139 mm
W	10-3/16 in
	259 mm
H	7-1/4 in
	185 mm
F	1 in
	26 mm
G	4 in
	102 mm
R	2-15/16 in
	75 mm
INLET	3/4 NPT
OUTLET	1 NPT
*	Bolt Size

Tech Data

60 psi
VPM	3600
CFM	21
80 psi
VPM	4000
CFM	26
Force lbs	1050
dB	83
Max Lbs Material in Bin	10500
Weight	24.5 lbs

VIBCO BVS Silent Turbine Vibrators are an ideal choice for the food, pharmaceutical, and chemical industries and other applications requiring closed-air systems.

Use VIBCO BVS Turbine Vibrators on any new installation or to replace worn, noisy and messy piston or ball vibrators
VIBCO BVS Turbine Vibrators feature a threaded exhaust to easily pipe off exhausted air, making them an ideal choice for sanitary and closed-air systems
High force output, rated for continuous duty
Available in a variety of food-grade and sanitary finishes
Patented Design is virtually silent and maintenance free
