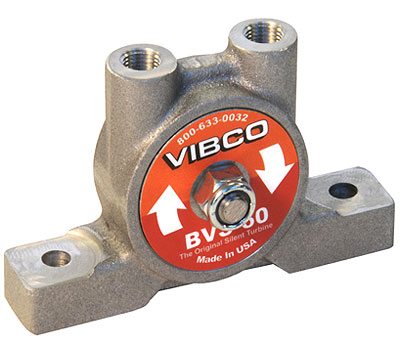

BVS-60 - Pneumatic Turbine Vibrator

Accessories
Documents
Dimensions
Tech Data

RECOMMENDED ACCESSORIES

1/8 - Exhaust Muffler

46102 - Filter/Regulator 1/4" NPT

2X1CH-IN - Channel Iron (Inches)

86102 - Ball Valve 1/4"

BVM-8 - Mounting Bracket BV(S)-60; V(S)-100

Application Bulletin
Quick Reference Guides
Complete Service Manual

Catalog

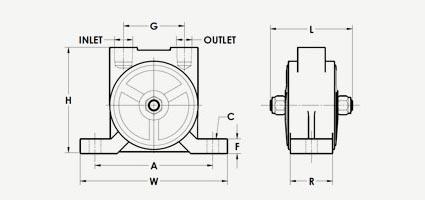

Dimensions

A	3 in
	76 mm
C*	1/4 in
	6 mm
L	1-5/8 in
	41 mm
W	3-13/16 in
	97 mm
H	2-7/16 in
	62 mm
F	5/8 in
	16 mm
G	1-1/4 in
	32 mm
R	3/4 in
	19 mm
INLET	1/8 NPT
OUTLET	1/8 NPT
*	Bolt Size

Tech Data

60 psi
VPM	12000
CFM	4
Force lbs	20
Force Newtons	89
dB	66
Max Lbs Material in Bin	200
Weight	0.5 lbs

VIBCO BVS Silent Turbine Vibrators are an ideal choice for the food, pharmaceutical, and chemical industries and other applications requiring closed-air systems.

Use VIBCO BVS Turbine Vibrators on any new installation or to replace worn, noisy and messy piston or ball vibrators
VIBCO BVS Turbine Vibrators feature a threaded exhaust to easily pipe off exhausted air, making them an ideal choice for sanitary and closed-air systems
High force output, rated for continuous duty
Available in a variety of food-grade and sanitary finishes
Patented Design is virtually silent and maintenance free
