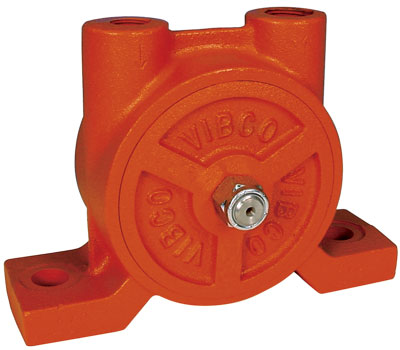

BVST-4400 - Pneumatic Turbine Vibrator

Accessories
Documents
Dimensions
Tech Data

RECOMMENDED ACCESSORIES

BVM-7 - Mounting Plate for BVS-570

3/4SV - Solenoid Valve

1 - Exhaust Muffler

86126 - Ball Valve 3/4"

46126 - Filter/Regulator 3/4" NPT

Quick Reference Guides
Complete Service Manual

Catalog

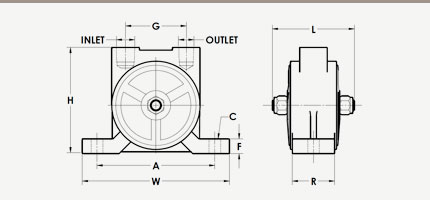

Dimensions

A	8 in
	204 mm
C*	3/4 in
	20 mm
L	5-7/16 in
	139 mm
W	10-13/16 in
	259 mm
H	7-1/4 in
	185 mm
F	1 in
	26 mm
G	4 in
	102 mm
R	2-15/16 in
	75 mm
INLET	3/4 NPT
OUTLET	1 NPT
*	Bolt Size

Tech Data

40 psi
VPM	9500
CFM	24
60 psi
VPM	11000
CFM	28
80 psi
VPM	12500
CFM	30
Force lbs	2000-4400
Force Newtons	8998-19572
dB	94
Max Lbs Material in Bin	45000
Weight	25 lbs

VIBCO BVS Silent Turbine Vibrators are an ideal choice for the food, pharmaceutical, and chemical industries and other applications requiring closed-air systems.

Use VIBCO BVS Turbine Vibrators on any new installation or to replace worn, noisy and messy piston or ball vibrators
VIBCO BVS Turbine Vibrators feature a threaded exhaust to easily pipe off exhausted air, making them an ideal choice for sanitary and closed-air systems
High force output, rated for continuous duty
Available in a variety of food-grade and sanitary finishes
Patented Design is virtually silent and maintenance free
