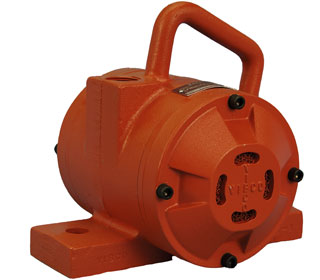

CCF-5000 - Pneumatic Turbine Vibrator



RECOMMENDED ACCESSORIES

6X10.5CH-IN - Channel Iron (Inches)
CCM-2 - Mounting Plate for CCF-5000/7000
86126 - Ball Valve 3/4"
46126 - Filter/Regulator 3/4" NPT

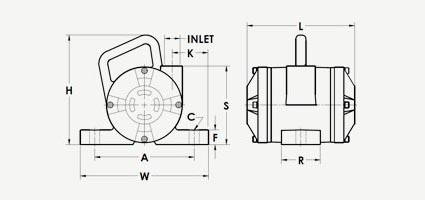

Dimensions

A 8 in
204 mm
C* 3/4 in
20 mm
L 8-5/8 in
220 mm
W 10-1/4 in
261 mm
H 8-7/8 in
226 mm
F 1-1/8 in
29 mm
K 2-7/8
74 mm
R 3-1/8 in
80 mm
S 6-1/4 in
159 mm
INLET 1 NPT
* Bolt Size

Tech Data

60 psi
VPM 4000
CFM 35
80 psi
VPM 6000
CFM 50
Force lbs 5000
Force Newtons 22245
dB 75
Max Lbs Material in Bin 50000
Weight 43.5 lbs

VIBCO CCF Vibrators are an ideal choice for replacing noisy roller and piston vibrators on large bins and hoppers.


  • Use VIBCO CCF vibrators as a quiet solution for large bins, hoppers, and chutes
  • VIBCO CCF Pneumatic Turbine Vibrators are used extensively in packing table and screen applications
  • The only vibrators on the market with high force output and virtually silent operation
  • All CCF models employ VIBCO’s patented silent turbine vibrator technology, feature oversized bearings that are prelubricated for life, and offer years of trouble-free service
