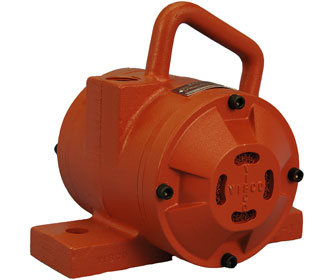

CCF-7000 - Pneumatic Turbine Vibrator



RECOMMENDED ACCESSORIES

CCM-2 - Mounting Plate for CCF-5000/7000
86126 - Ball Valve 3/4"
46126 - Filter/Regulator 3/4" NPT

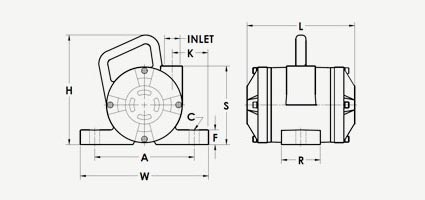

Dimensions

A 8 in
204 mm
C* 3/4 in
20 mm
L 8-5/8 in
220 mm
W 10-1/4 in
261 mm
H 8-7/8 in
226 mm
F 1-1/8 in
29 mm
K 2-7/8 in
74 mm
R 3-1/8 in
80 mm
S 6-1/4 in
159 mm
INLET 1 NPT
* Bolt Size

Tech Data

60 psi
VPM 5000
CFM 40
80 psi
VPM 7200
CFM 50
Force lbs 7000
Force Newtons 31143
dB 78
Max Lbs Material in Bin 70000
Weight 49 lbs

VIBCO CCF Vibrators are an ideal choice for replacing noisy roller and piston vibrators on large bins and hoppers.


  • Use VIBCO CCF vibrators as a quiet solution for large bins, hoppers, and chutes
  • VIBCO CCF Pneumatic Turbine Vibrators are used extensively in packing table and screen applications
  • The only vibrators on the market with high force output and virtually silent operation
  • All CCF models employ VIBCO’s patented silent turbine vibrator technology, feature oversized bearings that are prelubricated for life, and offer years of trouble-free service
