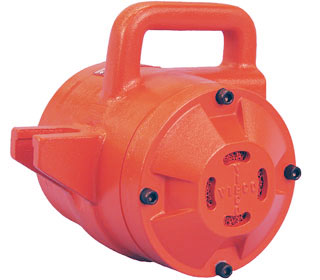

CCL-7000 - Pneumatic Turbine Vibrator

Accessories
Documents
Dimensions
Tech Data

RECOMMENDED ACCESSORIES

LC-1 - Vibrator Mounting Bracket For Large L&C

SC-2C2 - Safety Cable

Application Bulletin
Quick Reference Guides
Complete Service Manual

Catalog

Dimensions

B	8 in
	204 mm
L	8-5/8 in
	220 mm
W	9-3/8 in
	239 mm
H	8-5/8 in
	220 mm
K	5-1/4 in
	134 mm
R	1-1/4 in
	32 mm
S	6-1/16 in
	154 mm
INLET	1 NPT

Tech Data

60 psi
VPM	5000
CFM	40
80 psi
VPM	7200
CFM	50
Force lbs	7000
Force Newtons	31143
dB	78
Max Lbs Material in Bin	70000
Weight	48 lbs

VIBCO CCL Lug-Style Pneumatic Turbine Vibrators are an ideal choice for precast concrete forms.

VIBCO CCL Heavy Duty Pneumatic Turbine Vibrators use a durable lug bracket (sold separately) for easy portability
VIBCO CCL Vibrators are used extensively in precast and cast in place concrete jobs including concrete panels, tables, concrete pipe, prestressed concrete, and window panel frames.
All CCF models employ VIBCO’s patented silent turbine vibrator technology, feature oversized bearings that are prelubricated for life, and offer years of trouble-free service
