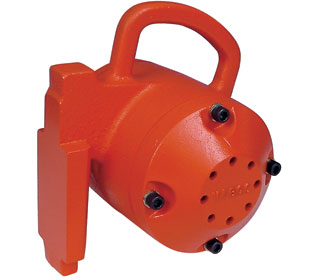

CCW-2000 - Pneumatic Turbine Vibrator



RECOMMENDED ACCESSORIES

UWF-1 - Female Hook Wedge For Wedge Form

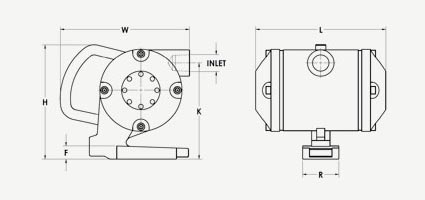

Dimensions

L 8-1/16 in
204 mm
W 8 in
203 mm
H 7 in
178 mm
F 7/8 in
23 mm
K 5-15/16 in
150 mm
R 2-1/4 in
58 mm
INLET 3/4 NPT

Tech Data

60 psi
VPM 4000
CFM 30
80 psi
VPM 6000
CFM 40
Force lbs 2000
Force Newtons 8998
dB 78
Max Lbs Material in Bin 20000
Weight 26.5 lbs

VIBCO CCW Heavy Duty Pneumatic Turbine Vibrators are an ideal choice for many precast concrete forms, including septic tanks, man holes.   The VIBCO CCW line are also ideal railroad car vibrators.


  • VIBCO CCW Turbine Vibrators are a versatile solution for use on precast concrete forms including septic tanks, manholes, columns, walls, bridge forms, utility vaults and other concrete form projects.
  • VIBCO CCW Turbine Virbators are an ideal railroad car vibrator with virtually silent operation - they outlast traditional piston vibrators 3 to 1
  • Durable wedge mounting style with optional brackets (sold separately)
  • The only vibrators on the market to offer high force output with virtually silent operation
  • Patented design does not require lubrication and is virtually maintenance free
