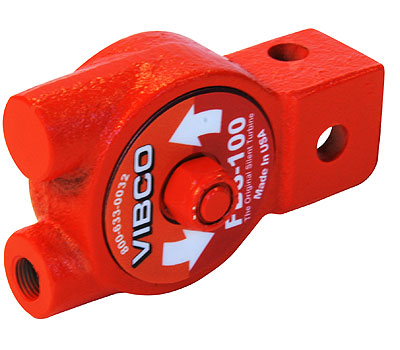

FBS-100 - Pneumatic Turbine Vibrator

Accessories
Documents
Dimensions
Tech Data

RECOMMENDED ACCESSORIES

Filter/Regulator 1/4" NPT

Ball Valve 1/4"

Application Bulletin
Quick Reference Guides
Complete Service Manual

Catalog

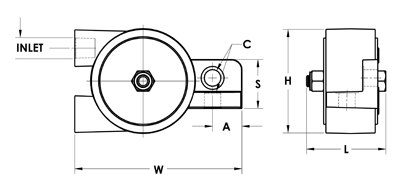

Dimensions

A	5/16 in
	8 mm
C*	5/16 in
	8 mm
L	1-5/8 in
	42 mm
W	3-1/4 in
	83 mm
H	2 in
	51 mm
S	1 in
	26 mm
INLET	1/8 NPT
*	Bolt Size

Tech Data

60 psi
VPM	15000
CFM	5
Force lbs	30
Force Newtons	133
dB	66
Max Lbs Material in Bin	For Match-Plates
Weight	1 lbs

VIBCO FBS Silent Pneumatic Turbine Vibrators are specially designed for use as a match plate vibrator on foundry molding machines.

Use VIBCO FBS Turbine Vibrators on any new or existing match plate application
VIBCO FBS Silent Pneumatic Turbine vibrators feature a fast start, high vibrations (revolutions) per minute, and a built-in muffler.
Lower-cost solution, rated for intermittent duty.
Virtually silent and maintenance free
