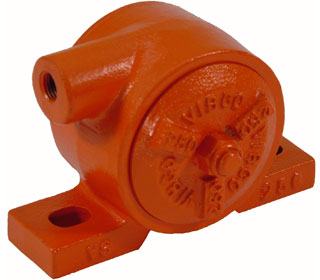

VS-250HS - Pneumatic Turbine Vibrator



RECOMMENDED ACCESSORIES

3X5CH-IN - Channel Iron (Inches)
46102 - Filter/Regulator 1/4" NPT
VSM-3 - Mounting Plate for V,VS-250, V,VS-320
86102 - Ball Valve 1/4"
1/4SV - Solenoid Valve

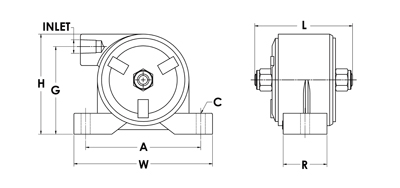

Dimensions

A 4 in
102 mm
C* 1/2 in
13 mm
L 3-5/8 in
93 mm
W 5-1/2 in
140 mm
H 3-11/16 in
94 mm
F 9/16 in
15 mm
G 3 in
77 mm
R 1-1/2 in
39 mm
INLET 1/4 NPT
* Bolt Size

Tech Data

60 psi
VPM 12000
CFM 10.5
Force lbs 480
dB 70
Weight 5 lbs

VIBCO VS Silent Turbine Vibrators are an ideal choice for material conveying systems, hoppers, screeds, rough duty applications and concrete forms.


  • Use VIBCO VS Turbine Vibrators on any new installation or to replace your old, noisy, messy ball or piston vibrators.
  • VIBCO VS Turbine Vibrators feature a built-in muffler, are virtually noiseless, and are ideal for rough applications.
  • Rated for continuous duty.
  • Available in a variety of food-grade and sanitary finishes
  • Patented Design that is virtually silent and maintenance free
