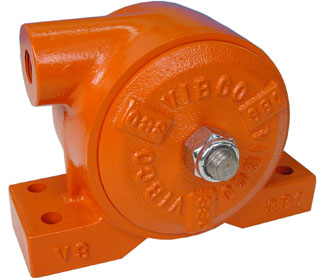

VS-380HS - Pneumatic Turbine Vibrator



RECOMMENDED ACCESSORIES

46123 - Filter/Regulator 3/8" NPT
3/8SV - Solenoid Valve
VSM-4 - Mounting Plate for V,VS-380
86123 - Ball Valve 3/8"
4X6.25CH-IN - Channel Iron (Inches)

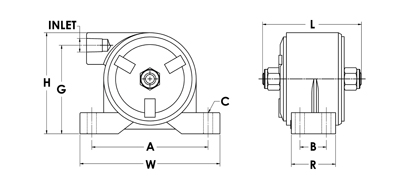

Dimensions

A 5-1/2 in
140 mm
B 1-1/4 in
32 mm
C* 3/8 in
10 mm
L 4-3/4 in
121 mm
W 6-7/8 in
175 mm
H 4-7/8 in
124 mm
F 1 in
26 mm
G 4 in
102 mm
R 2-1/4 in
58 mm
INLET 3/8 NPT
* Bolt Size

Tech Data

60 psi
VPM 5200
CFM 17
Force lbs 680
dB 72
Weight 12 lbs

VIBCO VS Silent Turbine Vibrators are an ideal choice for material conveying systems, hoppers, screeds, rough duty applications and concrete forms.


  • Use VIBCO VS Turbine Vibrators on any new installation or to replace your old, noisy, messy ball or piston vibrators.
  • VIBCO VS Turbine Vibrators feature a built-in muffler, are virtually noiseless, and are ideal for rough applications.
  • Rated for continuous duty.
  • Available in a variety of food-grade and sanitary finishes
  • Patented Design that is virtually silent and maintenance free
