Products
.
Pneumatic Vibrators
.
Turbine Vibrators
.
VSP
.
VSP-510 - Pneumatic Turbine Vibrator
Accessories
Documents
Dimensions
Tech Data
RECOMMENDED
ACCESSORIES
UPF - Female Pin Bracket For Pin Form Bracket
4X6.25CH-IN - Channel Iron (Inches)
86124 - Ball Valve 1/2"
46124 - Filter/Regulator 1/2" NPT
Quick Reference Guides
Complete Service Manual
Flyer
Catalog

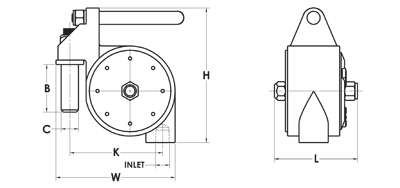

Dimensions
B
2-3/4 in
70 mm
C*
1 in
26 mm
L
4-13/16 in
123 mm
W
7-3/8 in
188 mm
H
8 in
204 mm
K
5-3/8 in
137 mm
INLET
1/2 NPT
*
Pin Size
Tech Data
60 psi
VPM
4000
CFM
18
80 psi
VPM
4500
CFM
21
Force lbs
1000
Force Newtons
4004
dB
77
Max Lbs Material in Bin
10000
Weight
18 lbs
VIBCO VSP Vibrators are the ideal choice for vibrating precast concrete burial vault applications - easy portability!
VIBCO VSP Vibrators are simple to move from form to form or bin to bin with a male pin and female pin bracket (bracket sold separately)
The VIBCO VSP Vibrators are commonly used on concrete burial vault forms, but are also widely used wherever the vibrators need to be moved regularly

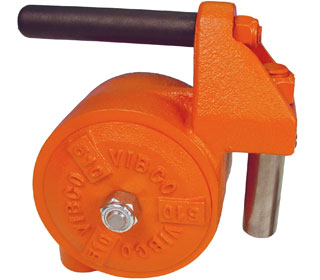

The VIBCO VSP-510 Pneumatic Turbine Vibrator employs VIBCO’s patented silent turbine vibrator technology, features bearings that are prelubricated for life, and offer years of trouble-free service
Made In The USA
50 Years
VIBCO Vibrators™ are 100% MADE IN THE USA since 1962.
Top Quality,
Fastest Delivery
100% Manufactured in the USA
Strict quality standards
Available and in-stock
Same day or next day shipping
Made with pride since 1962
